S10 and S15 Subwoofer Box

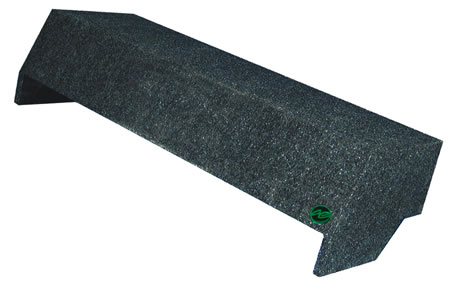

S10X260 Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Dual 10" or 12" Subwoofer Box
♦Down Firing Enclosure
♦Platinum Spring Loaded Terminal
♦100% American-made GREEN enclosure
♦Installation: Raise rear seat, Sit in to place sits against jack.
**Rear seating is lost
♦Dealer Login to View Pricing
Width |
Height |
Top Depth |
Bottom Depth |
39 3/4" |
14 1/4" |
11 1/2" |
15 1/2" |
Fits the Following Vehicles
♦All years Chevrolet/GMC S-10 and S-15 Extended Cab Trucks
*Will not fit 2002 and older S10-S15 Crew Cab models (4 doors)
Other Models Available
♦Return to Chevrolet/GMC Enclosures
For Dealer Ordering Information, Click Here.
Model
|
(Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
S10X260C10 |
1.3 |
7 9/16" |
2-10" |
9 1/8" for 10" |
Chevy Truck Sealed |
Carpeted |
Login |
| S10X260C12 | 1.3 | 7 9/16" | 2-12" | 11 1/8" for 12" | Chevy Truck Sealed | Carpeted | Login |
| S10X260R10 | 1.3 | 7 9/16" | 2-10" | 9 1/8" for 10" | Chevy Truck Sealed | Raw | Login |
| S10X260R12 | 1.3 | 7 9/16" |
2-12" | 11 1/8" for 12" |
Chevy Truck Sealed | Raw | Login |
