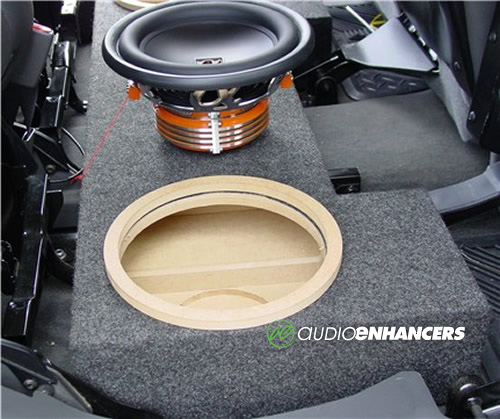

Avalanche and Escalade Subwoofer Box
AV96D Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Dual 10" or 12" Subwoofer Box
♦Upward Firing Enclosure
♦Platinum Spring Loaded Terminal
♦100% American-made GREEN enclosure
♦Installation: Fits under rear seat, over transmission hump, will not affect normal seating. Enclosure must be removed for Midgate access.
AV96D with 10"Width |
Height |
Top Depth |
Bottom Depth |
44 1/8" |
5 5/8" |
16 1/2" |
16 1/2" |
AV96D with 12"
Width |
Height |
Top Depth |
Bottom Depth |
48" |
5 1/8" |
16 1/2" |
16 1/2" |
Fits the Following Vehicles
♦02-13 Chevrolet/GMC Avalanche EXT
♦02-13 Escalade EXT
Customer Reviews
"Fit good, looks good, sounds good." - Crownman
Other Models Available
♦AV65
♦AV96S
Model
|
(Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
AV96DC10 |
.48 |
5 7/16" |
2-10" |
9 1/8" |
Avalanche Truck - Sealed |
Carpeted |
Login |
| AV96DC12 | .48 | 4 13/16” | 2-12" | 11 1/8" | Avalanche Truck - Sealed | Carpeted | Login |
| AV96DR10 | .48 | 5 7/16" | 2-10" | 9 1/8" | Avalanche Truck - Sealed | Raw | Login |
| AV96DR12 | .48 | 4 13/16” |
2-10" | 11 1/8" | Avalanche Truck - Sealed | Raw | Login |
